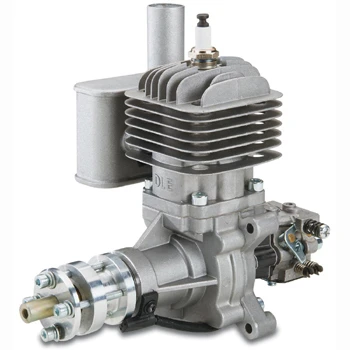

DLE 30 PETROL ENGINE Warehouse Stock

Convenience and power for quarter scale!

With the DLE-30, you get the economy of a gasoline engine in the size of a glow engine.

Electronic ignition provides the spark for fast starting. Timing automatically adjusts for peak power throughout the rpm range. And a made-for-flight design ensures the best power-to-weight ratio for performance.

A rear-mounted pumper carb ensures easier installs and smooth idling before you fly – and dependable fuel flow while you are flying.

Specifications:

Displacement:	30.5 cc (1.861 cu in)
Bore:	1.42 in (36 mm)
Stroke:	1.18 in (30 mm)
Weight:	2.4 lb (1.10 kg)
RPM Range:	1,600-8,500
Output:	3.7 hp @ 8,500 rpm
Requires:	Unleaded Petrol (Gasoline), oil, ignition battery & propeller
Includes:	electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, tdrottle arm extension & manual
Recommended Prop:	18×8, 18×10, 19×8 & 20×8
Recommended Break-In Prop:	18×8

Technical Data:

Ignition Battery:	4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPopack (Voltage regulator required witd LiPo or LiFe use.)
Compression Ratio:	7.6:1
Petrol/Oil Mix:	30:1
Weight Breakdown:	Engine: 32.1 oz (910 g); Muffler: 2.1 oz (60 g); Ignition: 4.2 oz (120g)
