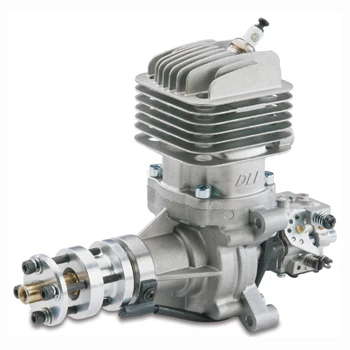

DLE 35 REAR CARB PETROL ENGINE Warehouse Stock

Product Features

• Advanced CNC machining, tight tolerances and refined porting improve compression and fuel burning efficiency to raise performance and reduce exhaust residue.
• Redesigned, lightened piston skirt provides better throttle response, fuel economy and resistance to wear.
• Included 2-stage muffler’s two outlets reduce back pressure and increase power.
• Also features a special aluminum alloy crankcase, high-quality sealed crankshaft bearings and DLE-customized carburetor.

Product

High performance in a compact package!

Producing 400 rpm more than the DLE-30, the DLE-35RA offers gas power convenience and performance in a popular size – great for pattern pilots and any fliers eager to give their aerobatic aircraft an extra edge. The rear exhaust design is ideal for tuned pipe setups.

Specifications:

Displacement:	34.9 cc (2.13 cu in)
Bore:	1.52 in (38.5 mm)
Stroke:	1.18 in (30 mm)
Weight:	2.77 lb (1.26 kg)
RPM Range:	1,500-8,500
Output:	4.1 hp @ 8,500 rpm
Requires:	Unleaded Petrol (Gasoline), oil, ignition battery & propeller
Includes:	Electronic ignition, muffler, spark plug, engine standoffs, integrated choke rod guide & rear-mounted carb

Technical Data:

Ignition Battery:	4.8V-12V NiMH, LiPo or LiFe pack (Voltage regulator required if LiPo or LiFe pack is used.)
Compression Ratio:	7.6:1
Petrol/Oil Mix:	30:1
Weight Breakdown:	Engine: 33.02 oz (936 g); Muffler: 2.61 oz (74 g); Ignition: 5.26 oz (211 g)
