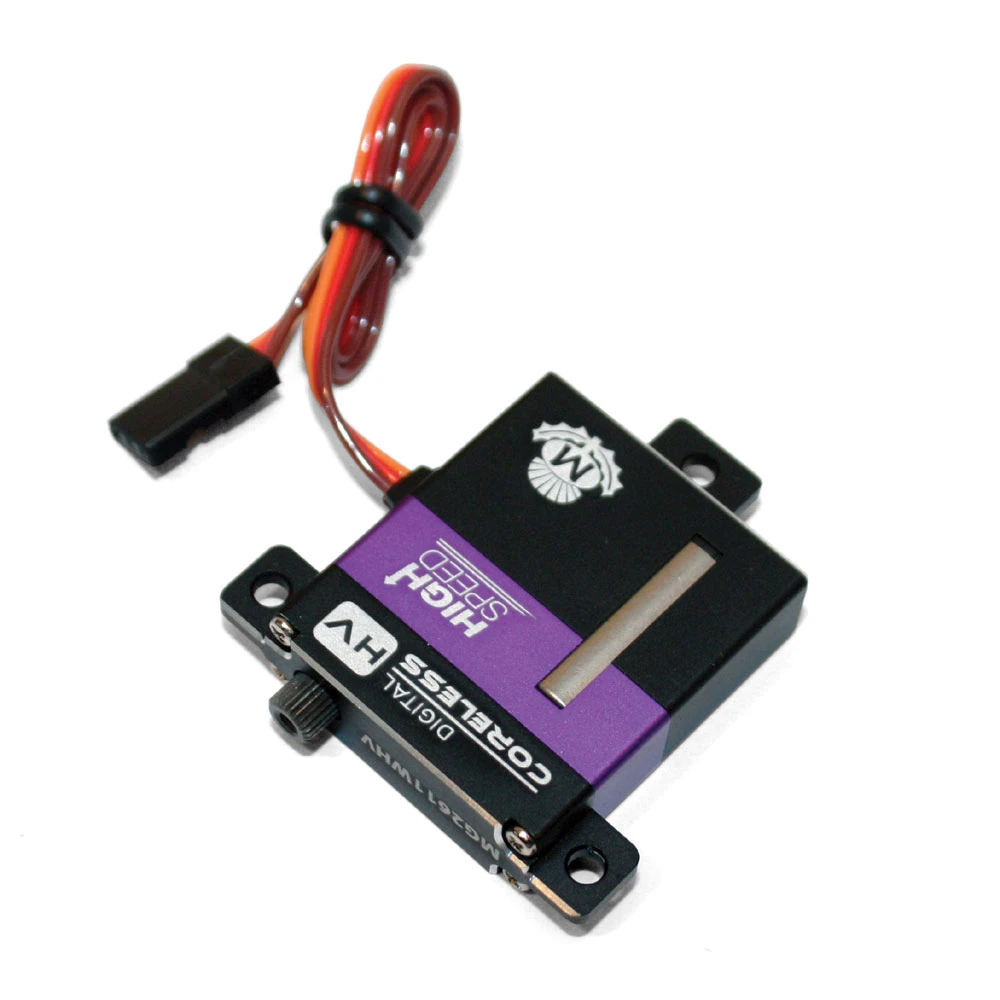

The MG2611WHV is an ultra high speed and torque wing servo, part of MacGregor’s range of high voltage digital servos designed for General use in RC Aeroplanes.
MacGregor’s HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (8.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.
Specifications:
| Dead band: | 2µs |
|---|---|
| Working frequency: | 1520µs / 330hz |
| Motor: | Coreless Motor |
| Gearset: | Full Metal |
| Operating Voltage: | 5.0 ~ 8.4V |
| Operating Speed (6.0V): | 0.13sec/60° |
| Operating Speed (8.4V): | 0.10sec/60° |
| Stall Torque (6.0V): | 8.7kg.cm |
| Stall Torque (8.4V): | 11kg.cm |
| Dimensions: | 30 x 10 x 35.5mm |
| Weight: | 26g (0.92oz) |
| Connector Wire Length: | JR 185mm |
| Bearing: | 2BB |
| Weight | 5 kg |
|---|
