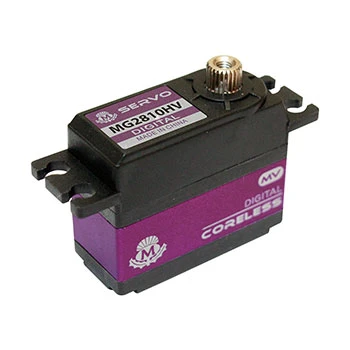

MACGREGOR MG2810HV 10.0KG/0.07S HIGH VOLTAGE DIGITAL SERVO

FEATURES:

• High performance high voltage coreless digital servo
• High-precision metal gears with hard anodising
• Dual Bearing Support
• Metal centre case to act as a heat sink
• Ideal for 450-500 class Helicopter swashplate
• JR style lead and plug
• 25 tooth spline (Futaba style)

PRODUCT DESCRIPTION:

The MG2810HV is part of MacGregor’s range of high voltage digital servos. This high voltage servo has superceeded the MG2607HV.

MacGregor’s HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (8.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.

SPECIFICATIONS:

Dead band:	2µs
Working frequency:	1520µs / 330hz
Motor:	Coreless Motor
Operating Speed (5.0 / 6.0 / 7.4 / 8.4V):	0.12 / 0.10 / 0.08 / 0.07s/60°
Stall Torque (5.0 / 6.0 / 7.4 / 8.4V):	6.6 / 7.4 / 9.0 / 10.0kg.cm
Dimensions:	35 x 15 x 29mm /1.38 x 0.59 x 1.14in
Weight:	28g (0.99oz)
Connector Wire Length:	JR 260mm (10.14in)
Bearing:	2BB
