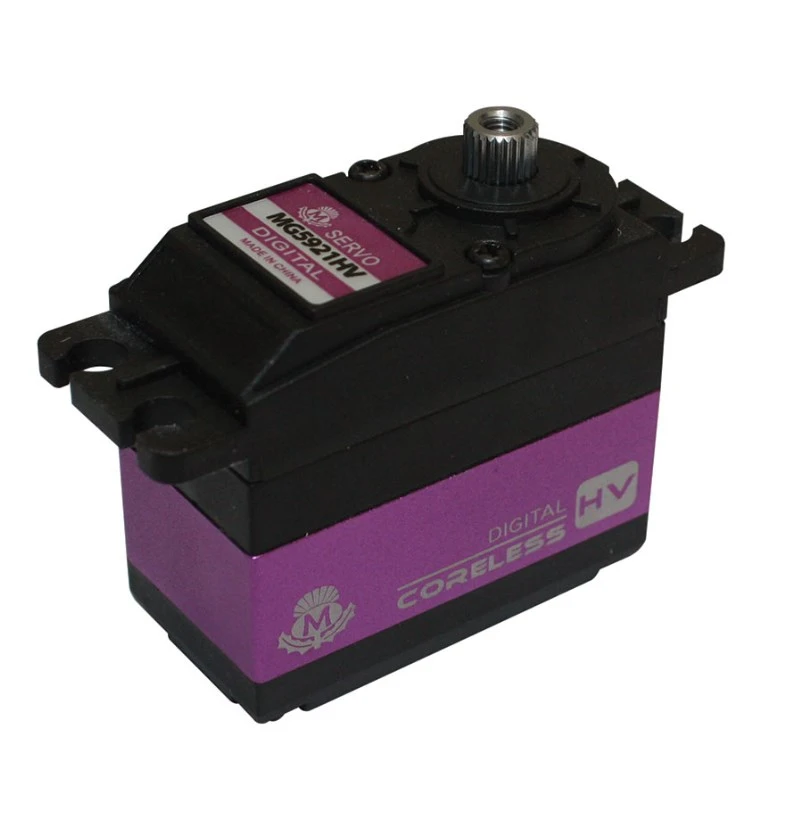

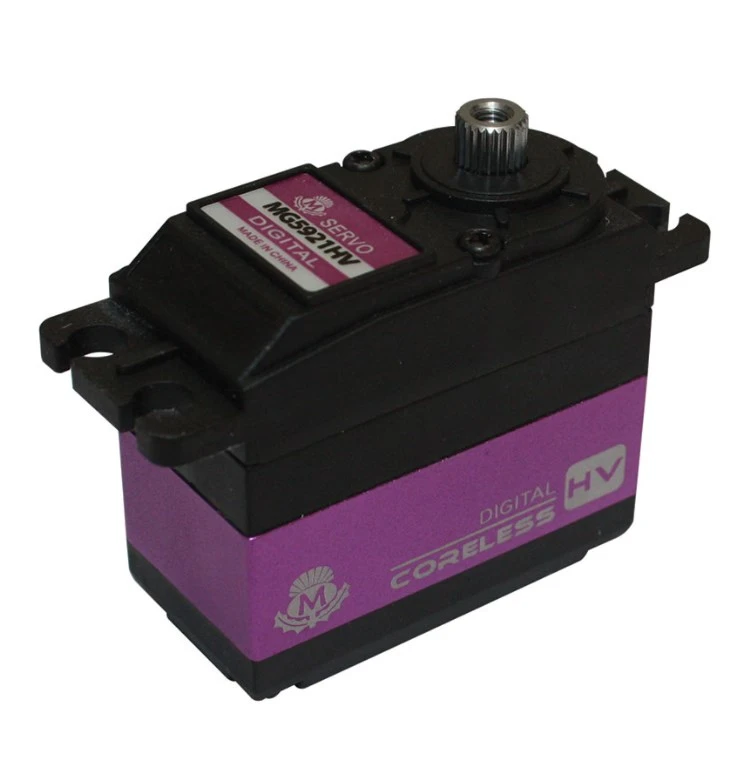

MacGregor MG5921HV Servo
Original price was: £36.95.£25.87Current price is: £25.87.
- Your satisfaction is 100% guaranteed.
- The home of quality products.
- The quality solution for all your needs.
- Safe and Secure Payments, Always
The MG5921HV is part of MacGregor’s range of high voltage digital servos. This high voltage, high torque servo has been designed for use with large scale & aerobatic aircraft.
MacGregor’s HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (8.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.
Specifications
| Dead band: | 1µs |
|---|---|
| Working frequency: | 1520µs / 330hz |
| Motor: | Coreless Motor |
| Operating Speed (6.0V): | 0.152sec/60° |
| Operating Speed (8.4V): | 0.123sec/60° |
| Stall Torque (6.0V): | 17.25 kg.cm (239.55oz/in) |
| Stall Torque (8.4V): | 20.32 kg.cm (281.89 oz/in) |
| Dimensions: | 40.5 x 20.5 x 36.5mm /1.59 x 0.80 x 1.43in |
| Weight: | 59.3g (2.09oz) |
| Connector Wire Length: | 265mm (10.43in) |
| Bearing: | 2BB |
| Weight | 5 kg |
|---|
