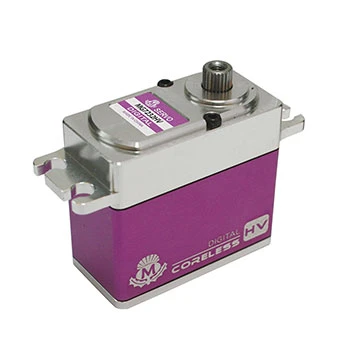

MACGREGOR MG7232HV 31.5KG.CM/0.09S HIGH VOLTAGE DIGITAL SERVO

FEATURES:

• High Performance High Voltage Coreless Digital Servo
• High-Precision Metal Gears With Hard Anodising
• Full CNC Machined Aluminium Case
• Dual Bearing Support
• JR Style Lead and Plug
• 25T Spline

OVERVIEW

The MG7232HV is part of MacGregor’s range of high voltage digital servos. This high voltage, high torque servo has been designed for use with large scale & aerobatic aircraft.

MacGregor’s HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (8.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.

SPECIFICATIONS

Dead band:	1µs
Working frequency:	1520µs / 330hz
Motor:	Coreless Motor
Operating Speed (6.0V):	0.12sec/60°
Operating Speed (8.4V):	0.09sec/60°
Stall Torque (6.0V):	26.2kg.cm (363.83oz/in)
Stall Torque (8.4V):	31.5kg.cm (437.43oz/in)
Dimensions:	40.5 x 20.5 x 36mm /1.59 x 0.80 x 1.43in
Weight:	72g (2.54oz)
Connector Wire Length:	JR 265mm (10.43in)
Bearing:	2BB
