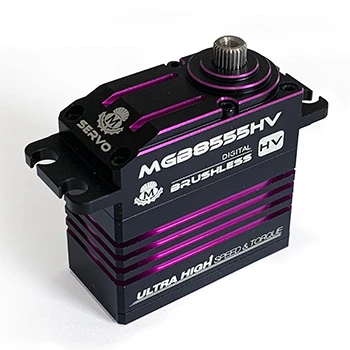

MACGREGOR MGB8555HV 54.7KG/0.12S BRUSHLESS HIGH VOLTAGE SERVO

FEATURES:

• High Performance, Standard Size, Multi Voltage Digital Servo
• High-Precision Steel Gears
• Full CNC Aluminium Hull Case
• High Quality Brushless Motor
• Dual Ball Bearing
• Long Working Life
• 25T (Futaba Type) Spline
• JR style plug
• Waterproof
• Suitable for IMAC, Warbirds & Giant Scale Warbirds / 1:10 to 1:5 Scale Racing Cars

DESCRIPTION:

The MGB8555HV is a waterproof ultra high speed and torque brushless digital servo, part of MacGregor’s range of high voltage servos designed for General use in RC Aeroplanes, Cars & Helicopters.

MacGregor’s HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (8.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.

SPECIFICATIONS:

Dead band:	2µs default
Working frequency:	1520µs / 330hz
Motor:	Brushless Motor
Gearset:	Steel
Spline:	25T
Operating Voltage:	5.0 ~ 8.4V
Operating Speed (5.0V):	0.20sec/60°
Operating Speed (6.0V):	0.17sec/60°
Operating Speed (7.4V):	0.13sec/60°
Operating Speed (8.4V):	0.11sec/60°
Torque (5.0V):	32.6kg.cm
Torque (6.0V):	39.1kg.cm
Torque (7.4V):	48.2kg.cm
Torque (8.4V):	54.7kg.cm
Dimensions:	40 x 20 x 39.1mm
Weight:	85g
Connector Wire Length:	310mm
Bearing:	2BB
